ASUS エイスース

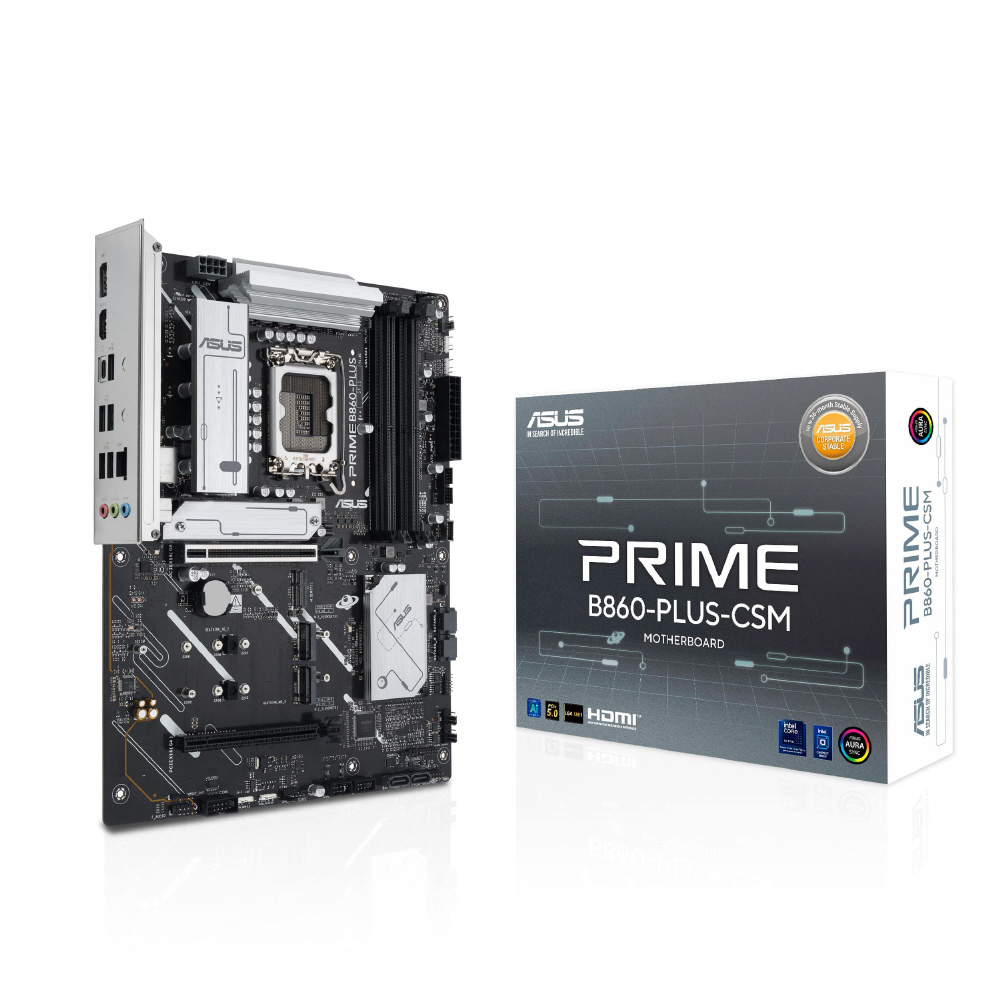

マザーボード(LGA1851) PRIME B860-PLUS-CSM [ATX]
PRIMEB860PLUSCSM
Intel B860チップセット搭載マザーボード
通常価格 ¥24,264(税別)
JAN:0197105814851
発売日 2025/01/14
在庫あり

 数量

Intel B860チップセット搭載マザーボード

■堅牢な電源ソリューション

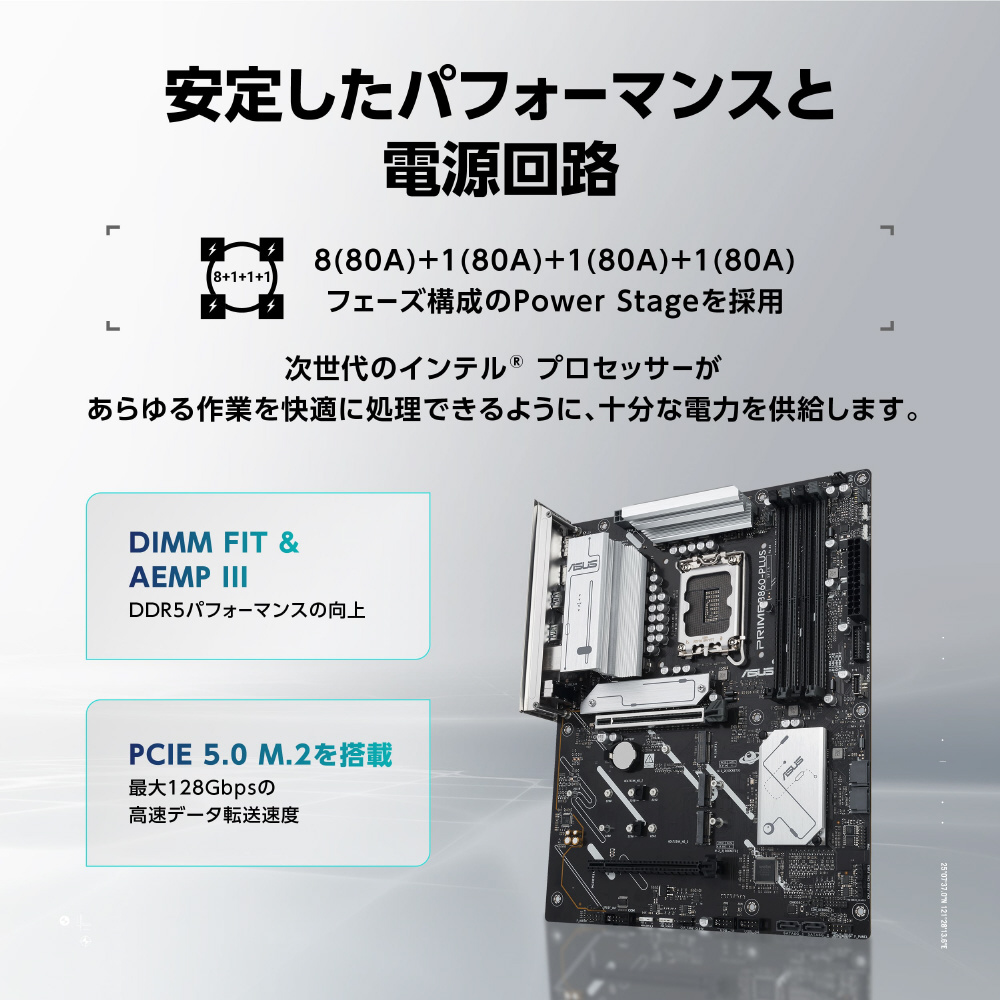

ProCool II 電源コネクタ、8(80A)+1(80A)+1(80A) +1(80A) Dr.Mos 電源ソリューション、6層PCB

■最適化された熱設計
拡大されたVRMとPCHヒートシンク、ヒートシンク付きM.2スロット × 1、Fan Xpert 4

■豊富な接続性
1 × M.2 Gen5、1× USB 20Gbps Type-Cリア、1× USB 5Gbps Type-Cフロントパネル、PCIe 5.0 x16 SafeSlot、Thunderbolt 5ヘッダー

■高性能ネットワーク
Ethernet 2.5G

■DIY フレンドリー

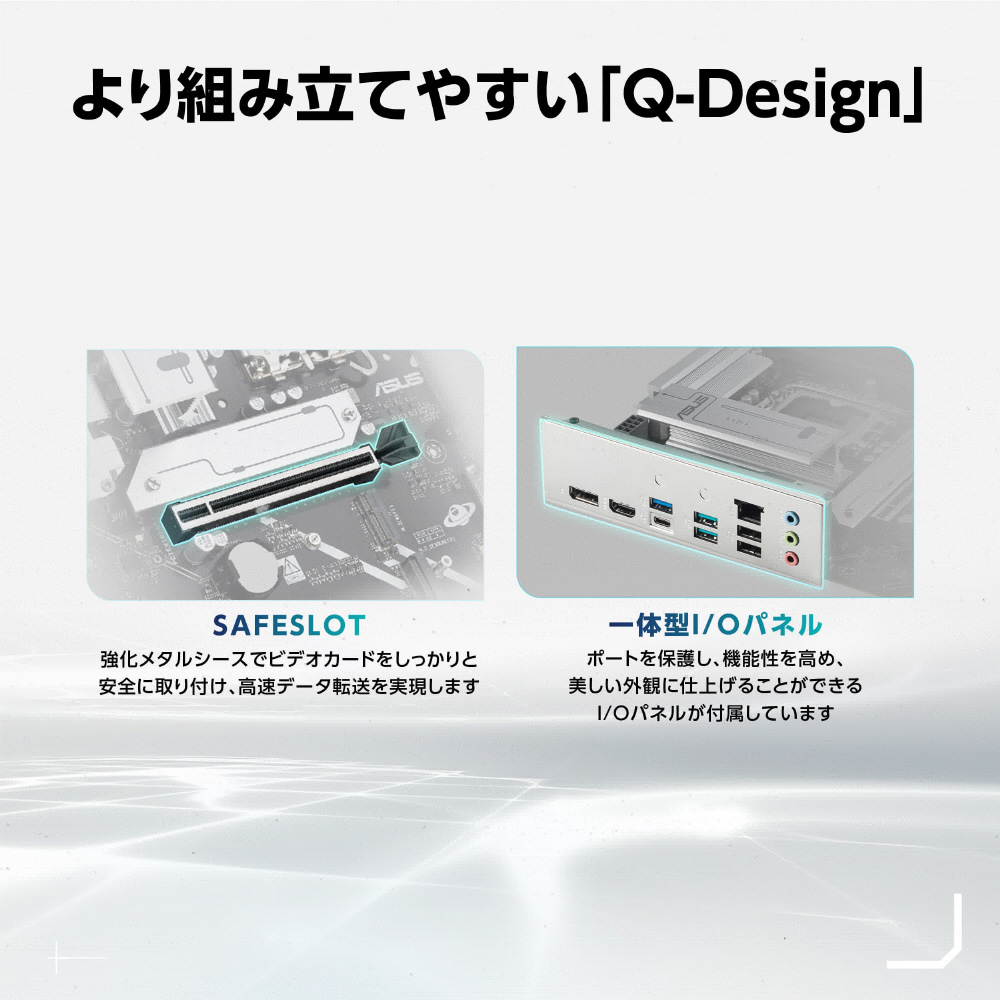

Q-LED、BIOS FlashBack、一体式IO、Q-Dashboard

■ASUS Control Center Express
強化されたデータ保護のためのリアルタイム IT 監視および管理ソフトウェア

詳しくは以下のサイトもご参照ください。 ※外部サイトへリンクします。
メーカーサイト:こちらをクリック    取扱説明書:こちらをクリック   
商品スペック
メーカー希望
小売り価格(税別)
オープン

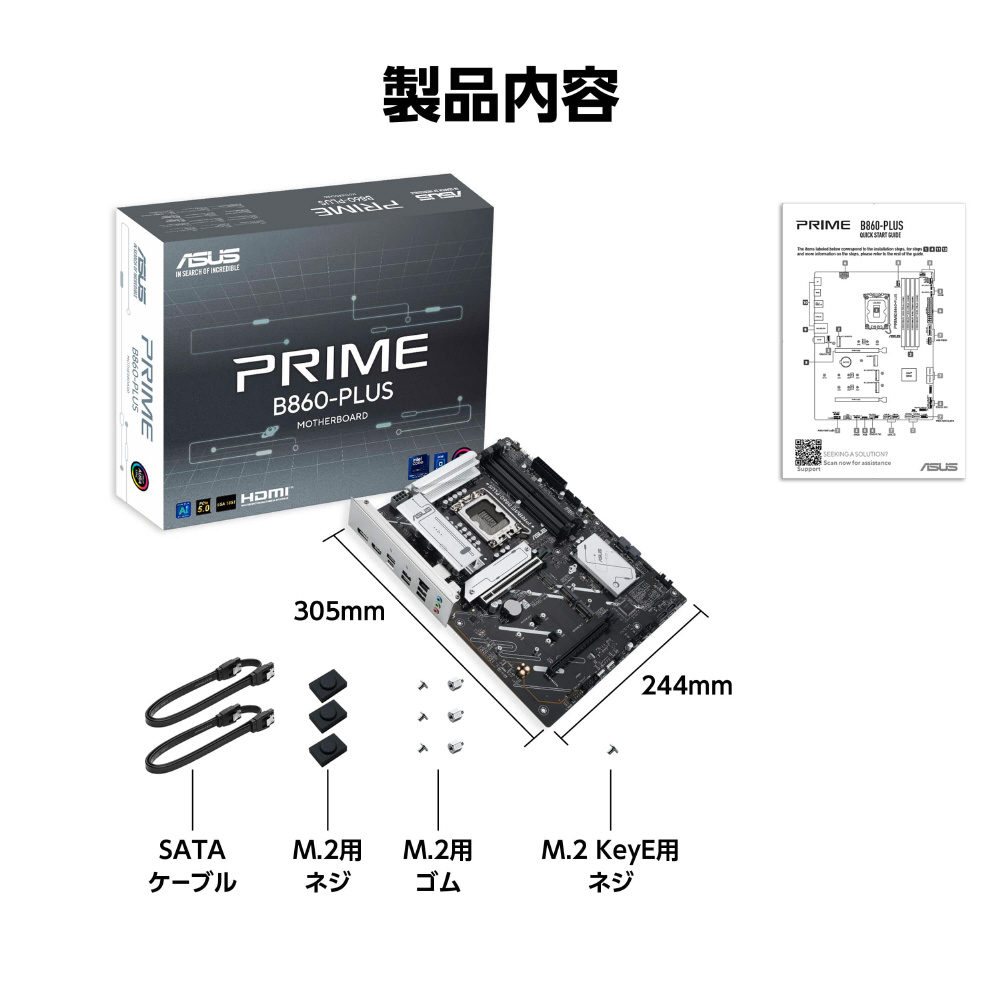

付属品 2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x Quick start guide

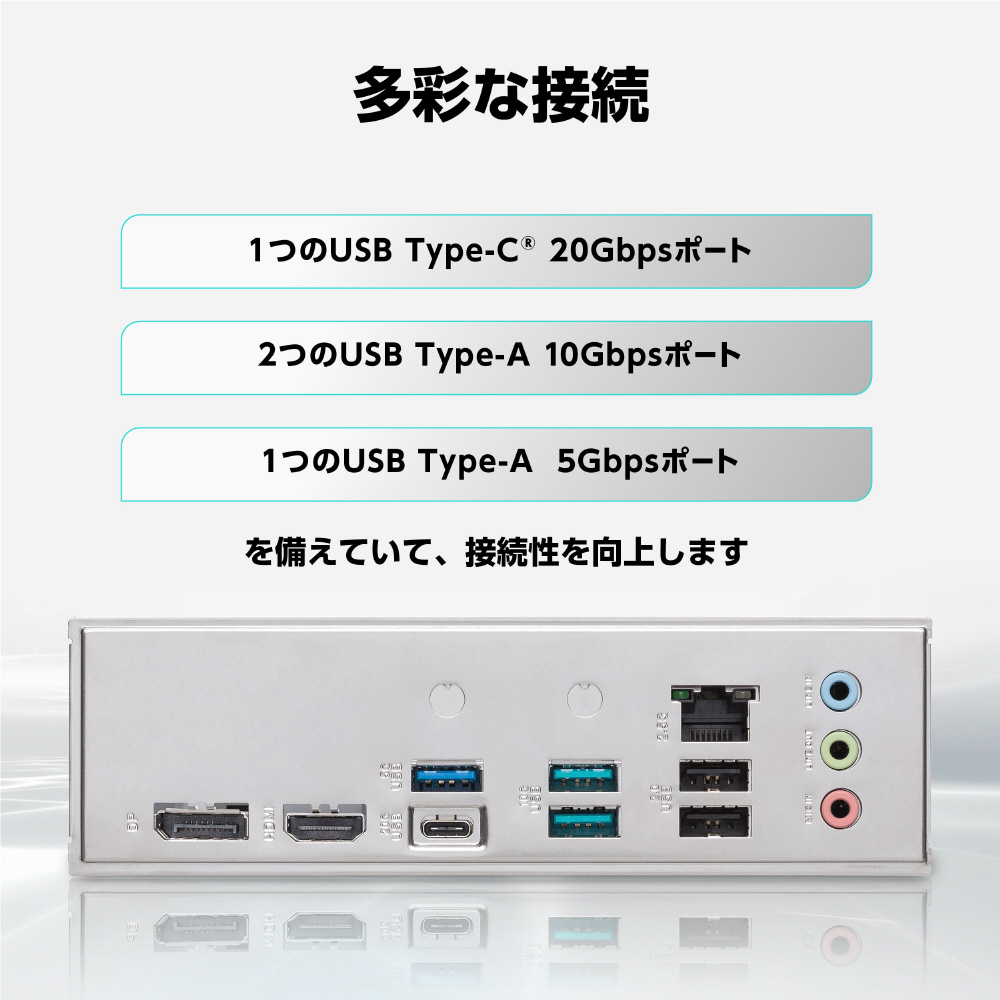

その他I/Oポート詳細 [Back Panel I/O Ports]
1 x USB 20Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
LAN [Ethernet]
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

[Wireless]
M.2 slot only (Key E、CNVi & PCIe)
USB [USB]
Rear USB (Total 6 ports)
1 x USB 20Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps port (1 x USB Type-C)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
仕様1 [対応OS]Windows 11 (22H2 & later)、Windows 10 64-bit(21H2 & later)
[フォームファクター]ATX
[CPU]Support Intel Core Ultra Processors (Series 2) 、LGA1851
[Chipset]Intel B860
[Memory]4 x DIMM slots、max. 256GB、DDR5
[Audio]Realtek 7.1 Surround Sound High Definition Audio CODEC
仕様2 [Graphics]
1 x DisplayPort(Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
1 x HDMI port(Supports 4K@60Hz as specified in HDMI 2.1.)
仕様3 [Expansion Slots]
Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

[Storage]
3 x M.2 slots
4 x SATA 6Gb/s ports
メーカー保証年数 1年
