GIGABYTE ギガバイト

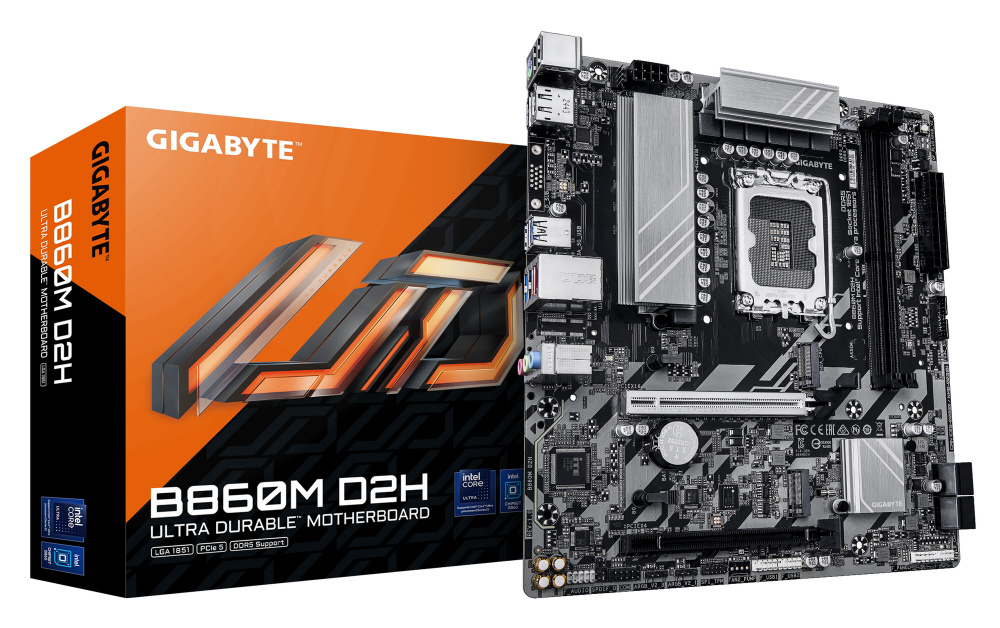

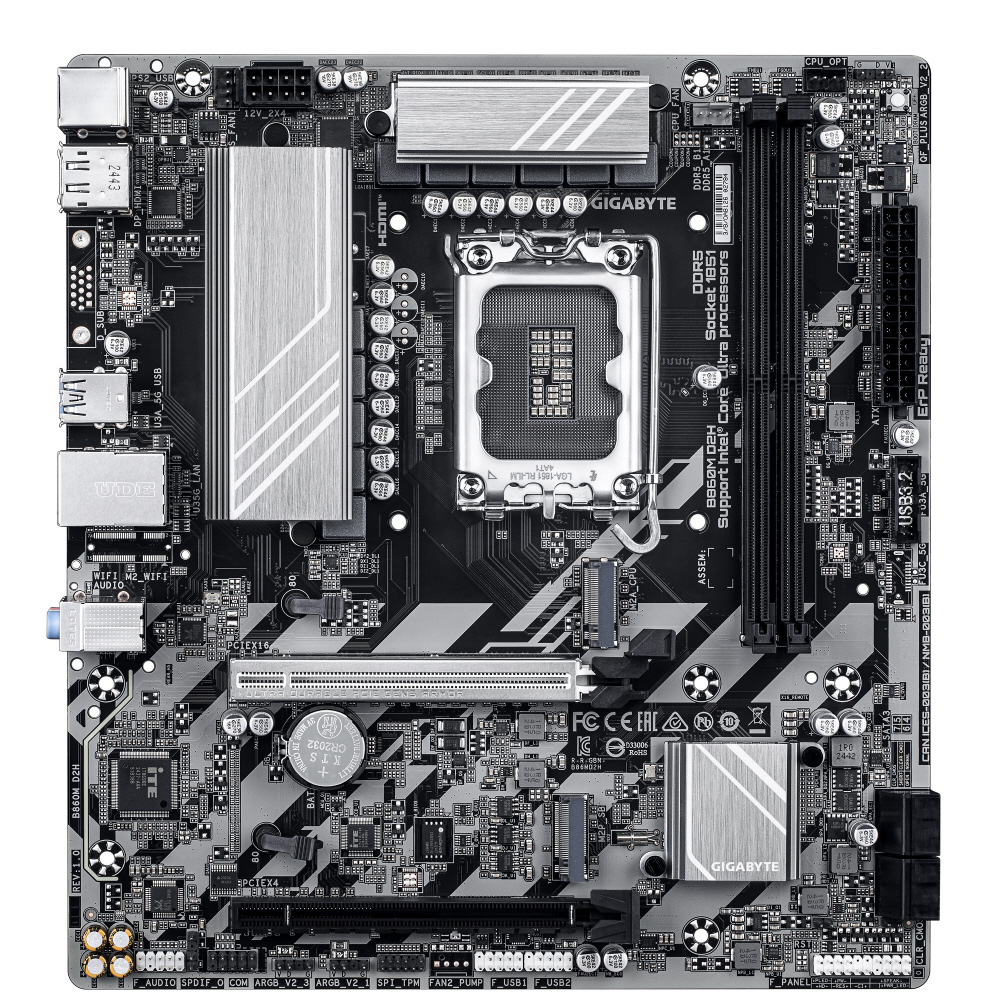

マザーボード(LAG1851) B860M D2H [ATX]
B860MD2H
Intel B860チップセット搭載、Intel Core Ultra プロセッサー (Series2) に対応したMicro-ATXマザーボードです。
通常価格 ¥17,982(税別)
JAN:0889523046685
発売日 2025/01/14
残りわずか

 数量

Intel B860チップセット搭載、Intel Core Ultra プロセッサー (Series2) に対応したMicro-ATXマザーボードです。

■Intel B860チップセットを搭載し、Intel Core Ultra プロセッサー (Series2) のCPU・APUに対応。DDR5メモリに対応しており、高速なシステム環境を構築可能です。

■PCIe 4.0対応のM.2スロットを搭載し、NVMe SSDの速度を引き出します。

■有線LANポートは2.5GbE LANに対応し、安定した高速ネットワーク接続が可能です。

■6+1+2+1フェーズのDr.MOS電源設計により、CPUへの安定した電力供給を保証します。

詳しくは以下のサイトもご参照ください。 ※外部サイトへリンクします。
メーカーサイト:こちらをクリック   
商品スペック
メーカー希望
小売り価格(税別)
オープン
付属品 バンドル・ソフトウェア
Norton Internet Security (OEM version)
LAN bandwidth management software
その他I/Oポート詳細 [バックパネル端子]
3 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
LAN [有線LAN]
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB [USB端子]
Chipset:
5 x USB 3.2 Gen 1 ports (3 ports on the back panel、2 ports available through the internal USB header)
3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
仕様1 [対応OS]Windows 11/10(64-bit)
[フォームファクター]ATX
[対応CPU]LGA1851 socket
[チップセット]Intel B860 Express
[メモリー]2 x DDR5 DIMM sockets supporting up to 128 GB
[オーディオ]Realtek Audio CODEC
仕様2 [映像出力端子]
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort、supporting a maximum resolution of 3840x2160@144Hz
1 x HDMI port、supporting a maximum resolution of 4096x2160@60Hz
仕様3 [拡張スロット]
CPU:
1 x PCI Express x16 slot、supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot、supporting PCIe 4.0 and running at x4 (PCIEX4)

[ストレージ端子]
CPU:
1 x M.2 connector (PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
メーカー保証年数 3年
